Description

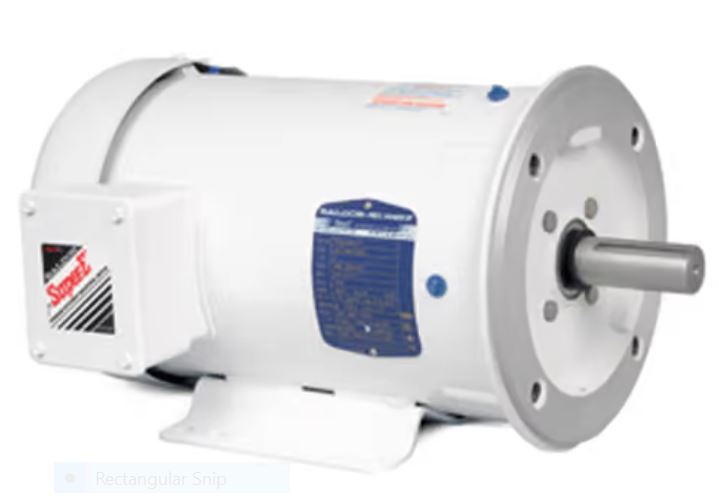

General Purpose Washdown Duty Motor (Painted) - General Purpose Motor (Painted), 7-1/2 hp, 3 ph, 1800 rpm, 230/460 V, 213TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz
SPECIFICATIONS
| Motor Category | General Purpose Motor (Painted) |
|---|---|
| Motor Phase | 3 ph |
| Motor Horsepower | 7-1/2 hp |
| Synchronous RPM | 1800 rpm |
| Motor Supply Voltage | 230/460 V |
| Frame Size | 213TC |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Frequency Rating | 60 Hz |
| Duty / Condition Type | Continuous Duty |
| Mounting Type | Footed/C-Face Flange |
| Full Load Current | 9.40 A |
| Full Load Efficiency | 91.70 % |
| Amps @ Voltage | 9.4 A @ 460 V; 21.0 A @ 208 V; 18.8 A @ 230 V |
| Volts @ Frequency | 230 V @ 60 Hz; 460 V @ 60 Hz |
| Shaft Diameter | 1.38 in |
| Overall Length (C-Dimension) | 19.78 in |
| Service Factor | 1.15 |
| Frame Material | Steel |
| Insulation Class | F |
| IP Rating | 55 |
| Standards Met | UR, CSA EEV, CSA |
| Harmonization Code | 8501.52.4000 |
| Weight | 129.00 lbs |
| Applications | Food processing and other applications where motors receive washdown on a regular basis. |
| Additional Details | 300 series stainless steel hardware, moisture sealant on bolt heads, between frame and endplates. Neoprene gaskets. Double sealed ball bearings. Lip and V-Ring seal on drive end. Stainless steel shaft extension. Electrostatically applied epoxy finish over autophoretic primer. Class F insulation. Super-E® motors have NEMA Premium® efficiency and 3 year warranty. |
